NR Line

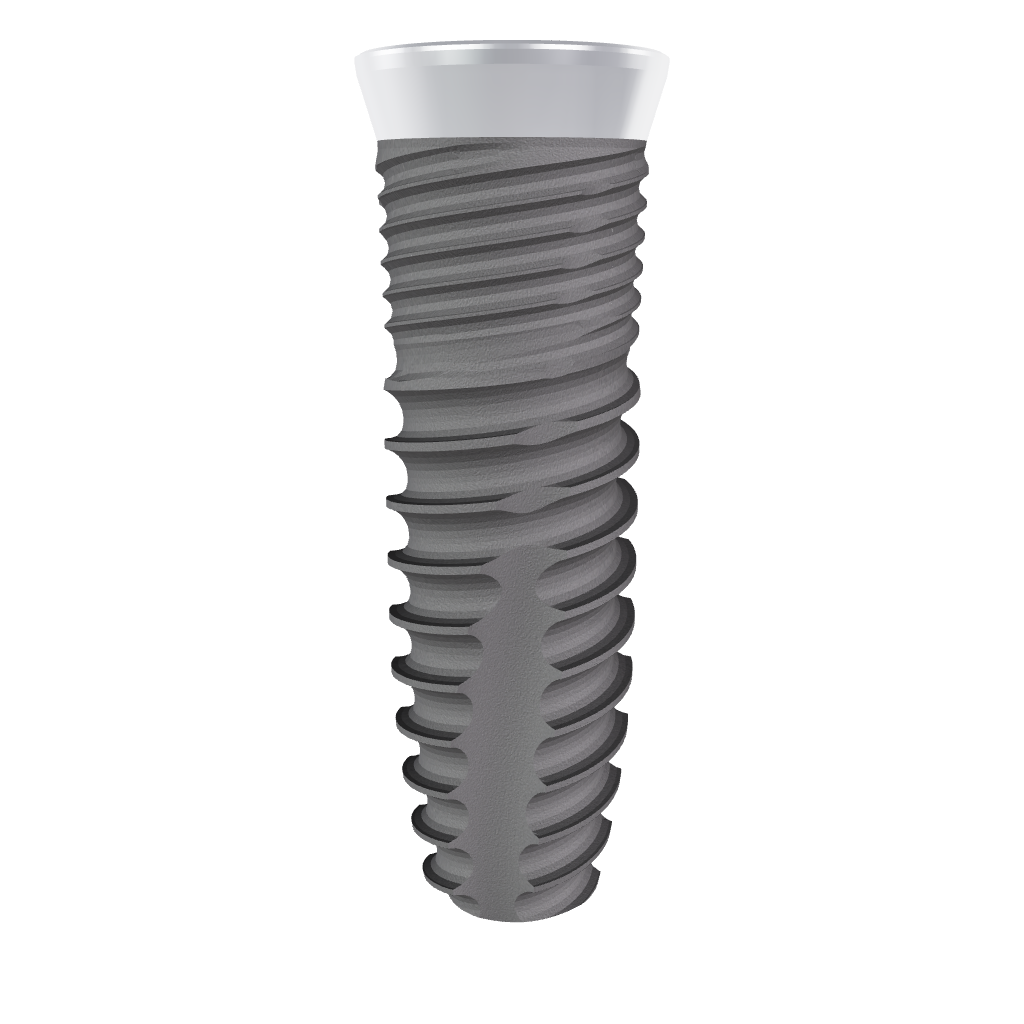

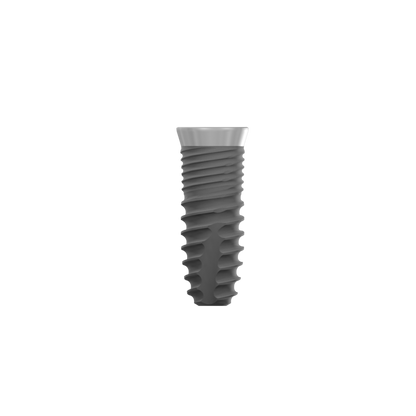

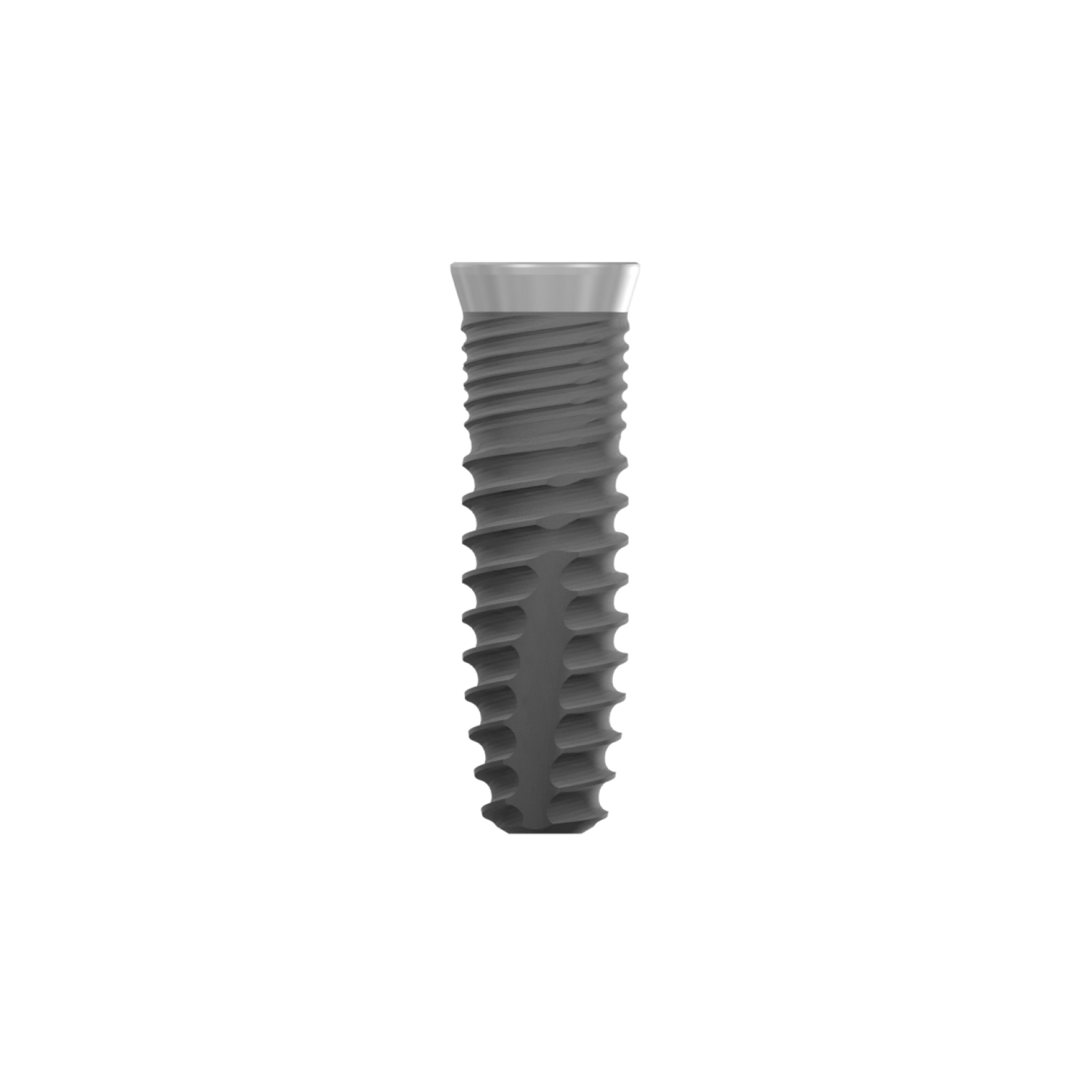

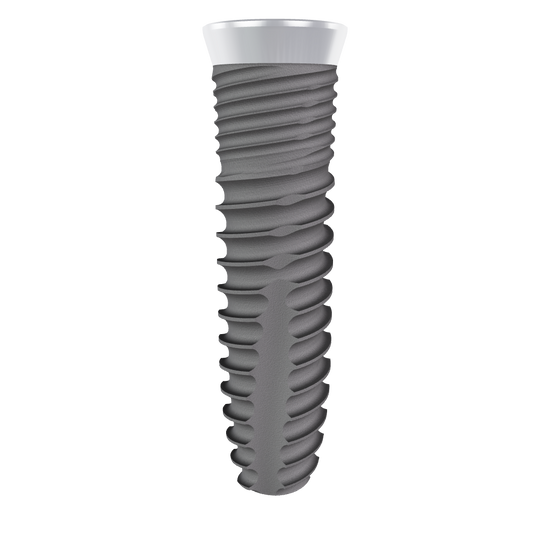

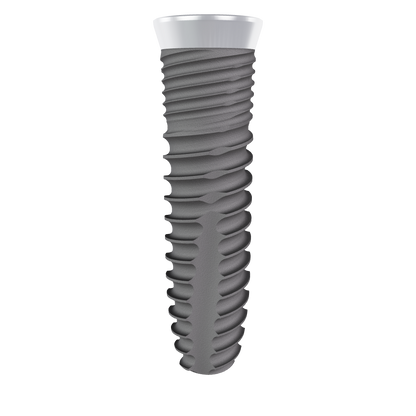

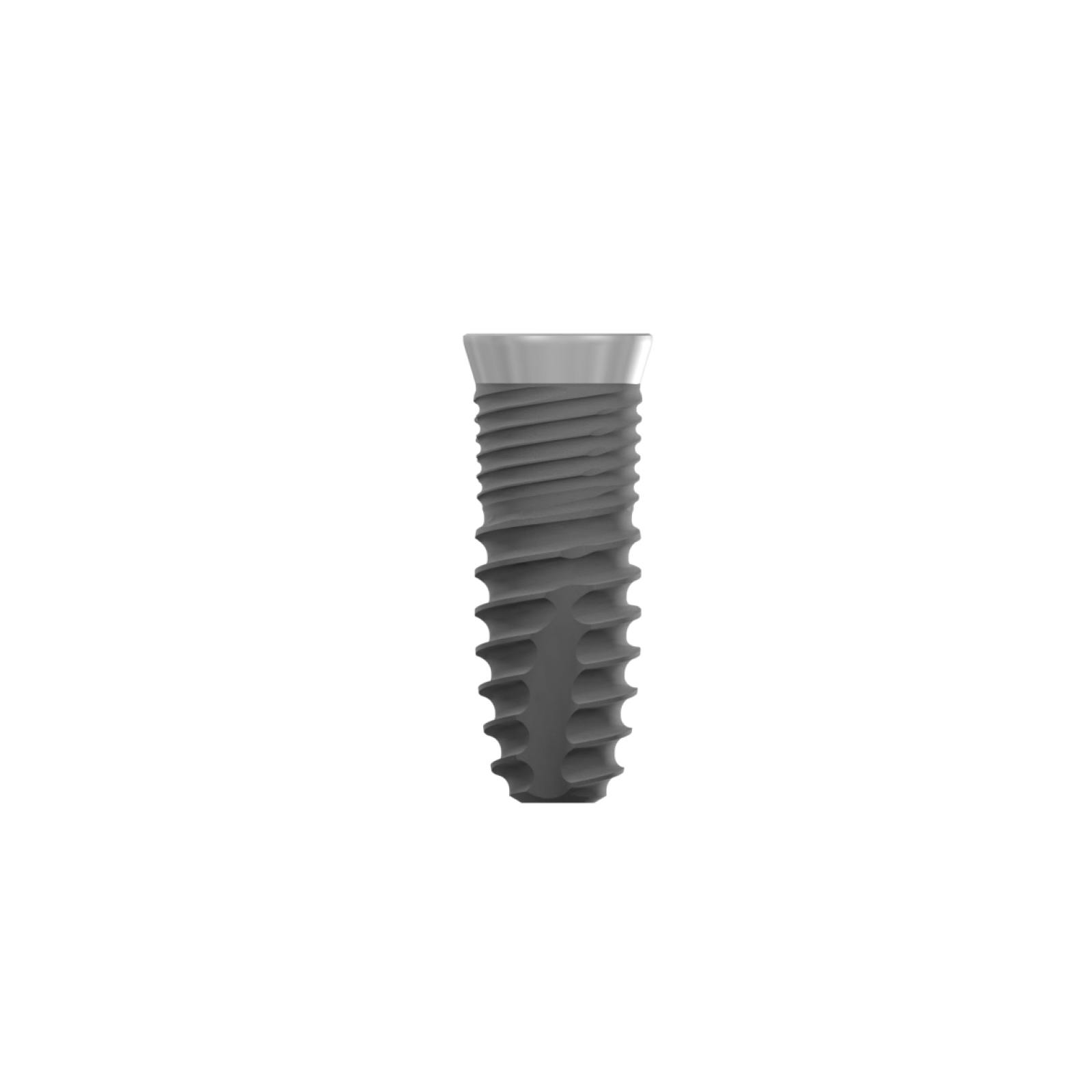

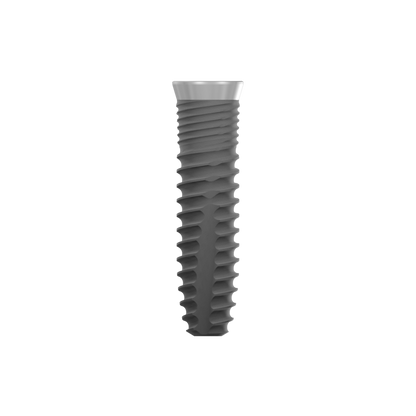

NR Line Fixture (Ø3.6 mm)

NR Line Fixture (Ø3.6 mm)

REF GFX3009

$100.00 USD
$100.00 USD
Sale Sold out
Length (mm)
  • Narrow Diameter Implant
  • S.L.A. Surface Treatment
  • Double-Threaded, Tapered Body Design
  • Platform-Switched Design
  • Internal Conical Connection
  • Apical Design
  • Material: Unalloyed Titanium ASTMF67
    (Commercially pure titanium grade 4)
  • Cover screw is not included in the package

*Use all authentic Dentium Pieces ONLY for higher successful rate & best result
View full details

Narrow Diameter Implant
- ⌀3.1mm body diameter for narrow ridges.
- Available in two platforms (⌀3.2mm & ⌀3.6mm)

S.L.A. Surface Treatment
- Sandblasted with Large grits and Acid-etchedWell documented and clinically proven surface technology.

Double-Threaded, Tapered Body Design
- Easy and fast insertion can be done due to the double-threaded straight body design

Platform-Switched Design
- Beneficial in marginal bone preservation

Internal Conical Connection
- Internal conical connection between implant and abutment interface allows tight sealing.

Apical Design
- The 3-blade self-tapping design can minimize bone destruction.
- The flat and design reduces bone perforation risk.

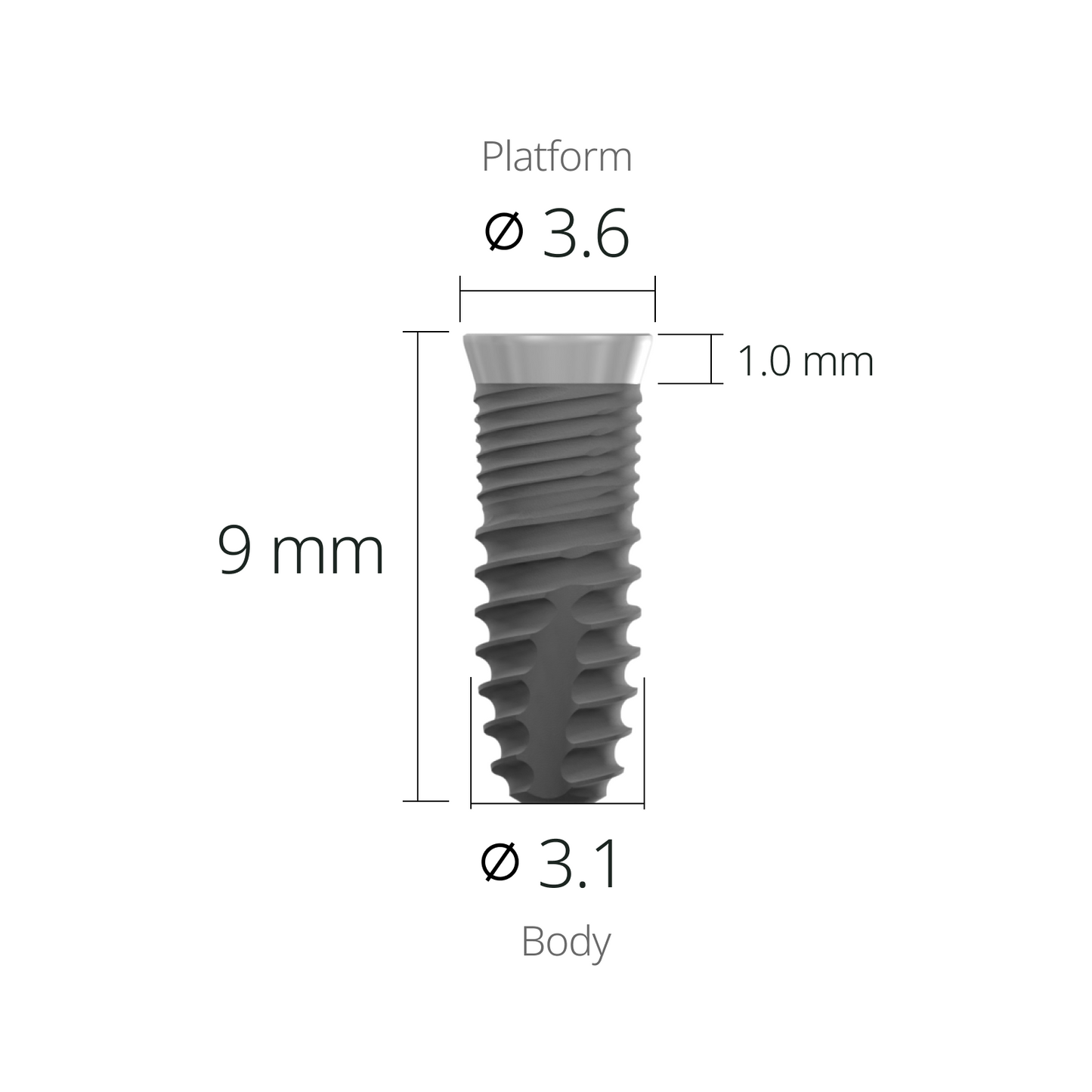

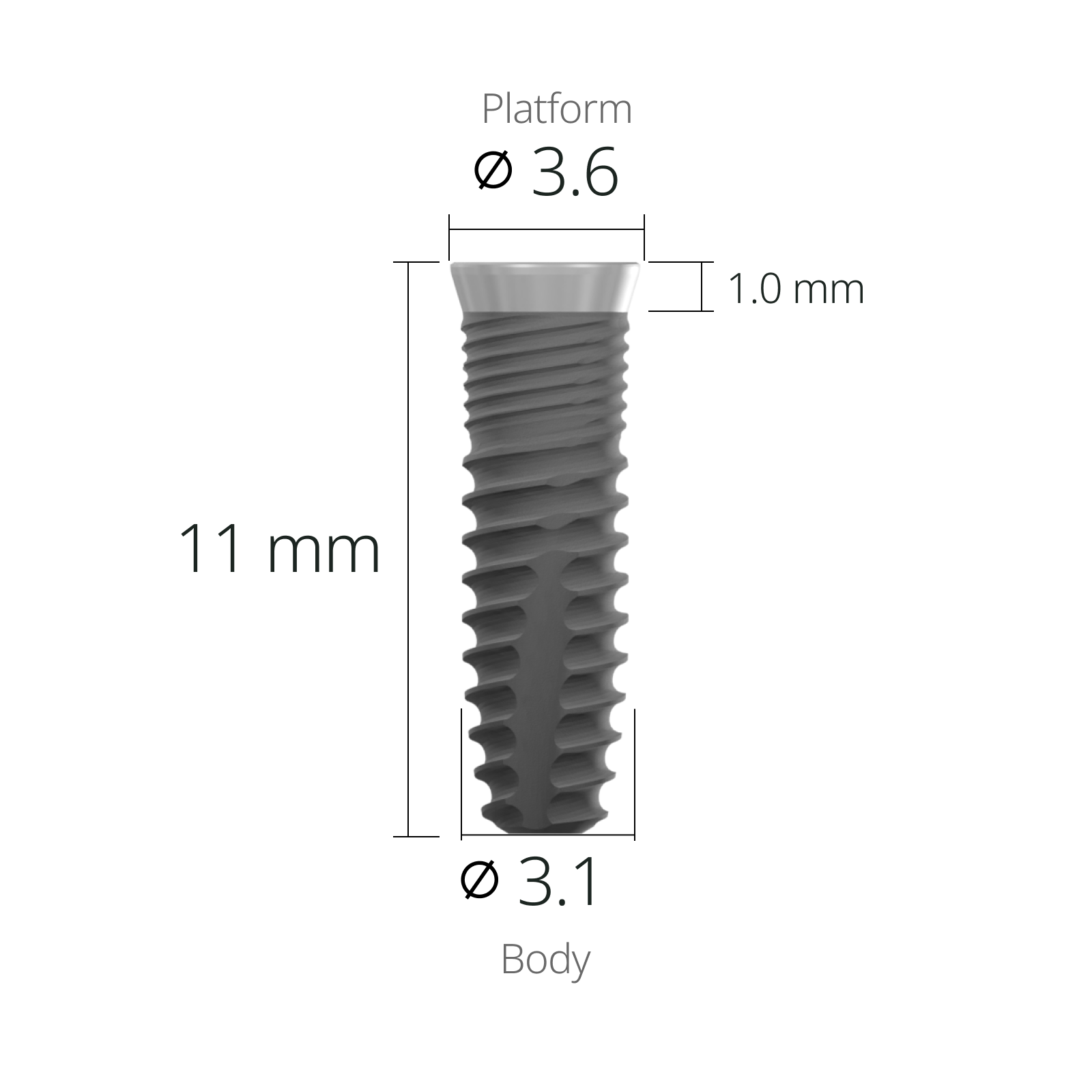

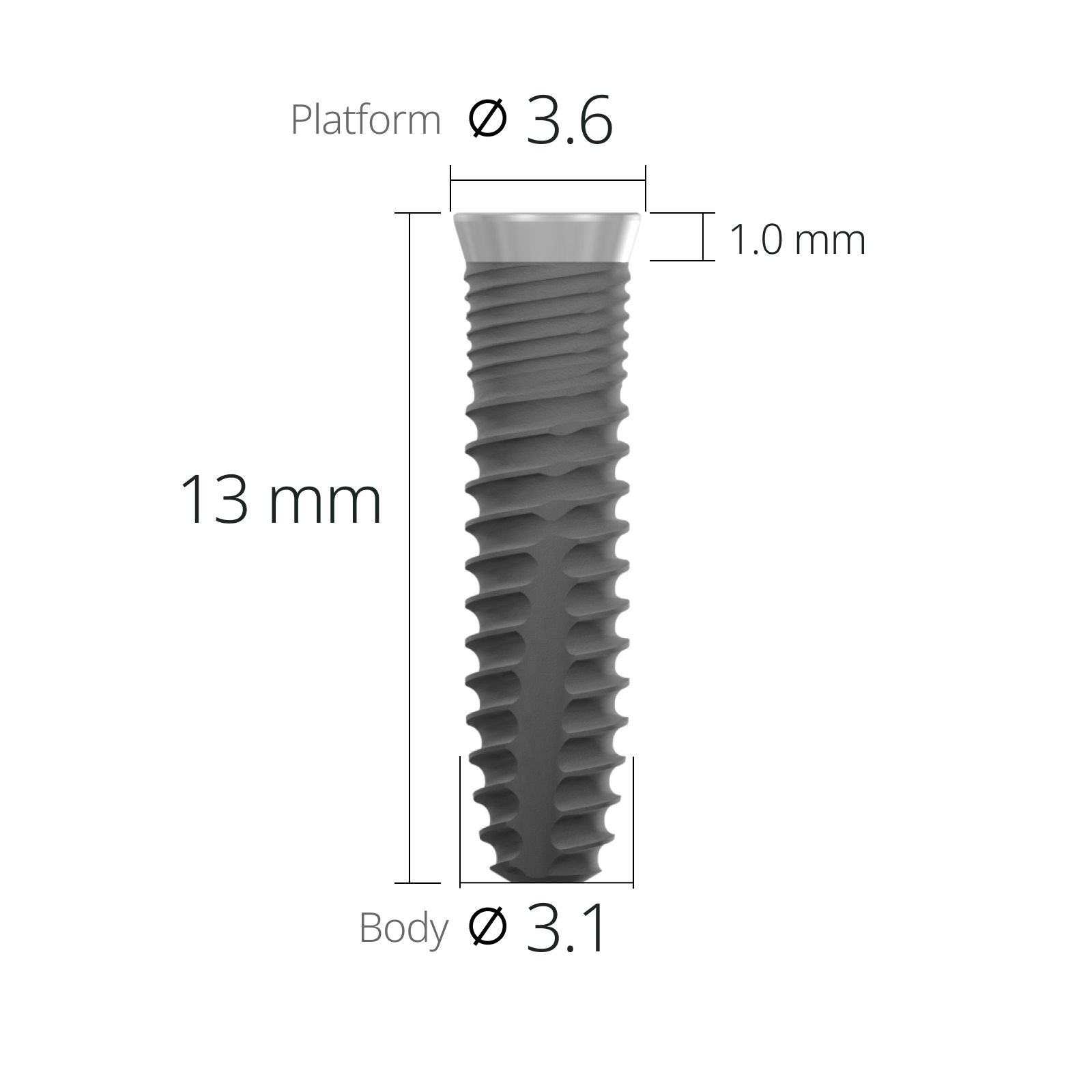

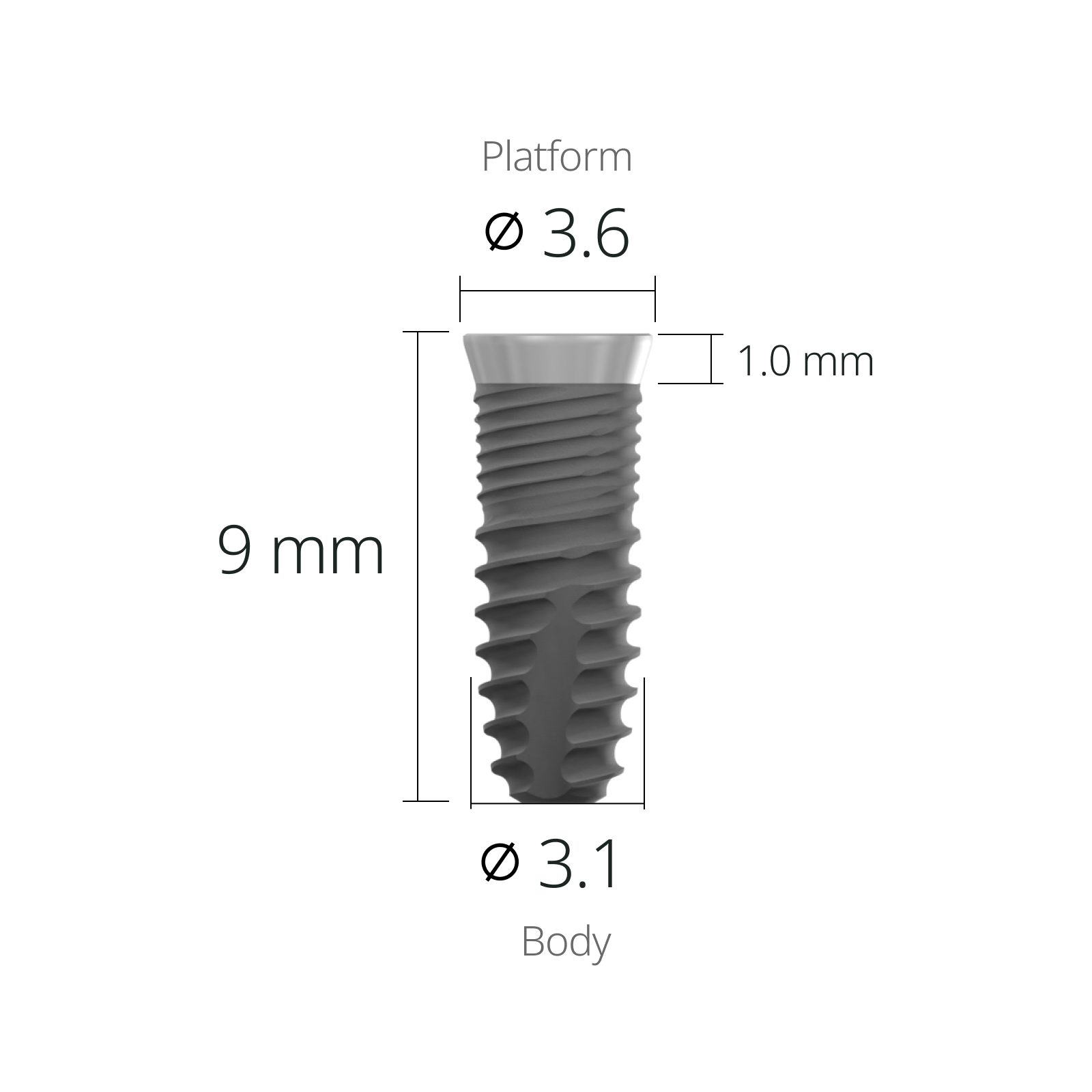

Platform: Ø3.6 mm
Body: Ø3.1 mm
Bevel Height: 1.0 mm

For more information on sizes, materials, and applications, visit our catalog to browse all available options.


Through Dentium’s e-IFU page, you have the option to download the e-IFUs directly to your device. If you would like a printed copy mailed to you, please contact cs@dentiumusa.com

For more information about this product’s UDI and regulatory status, visit the FDA Global Unique Device Identification Database (GUDID)
